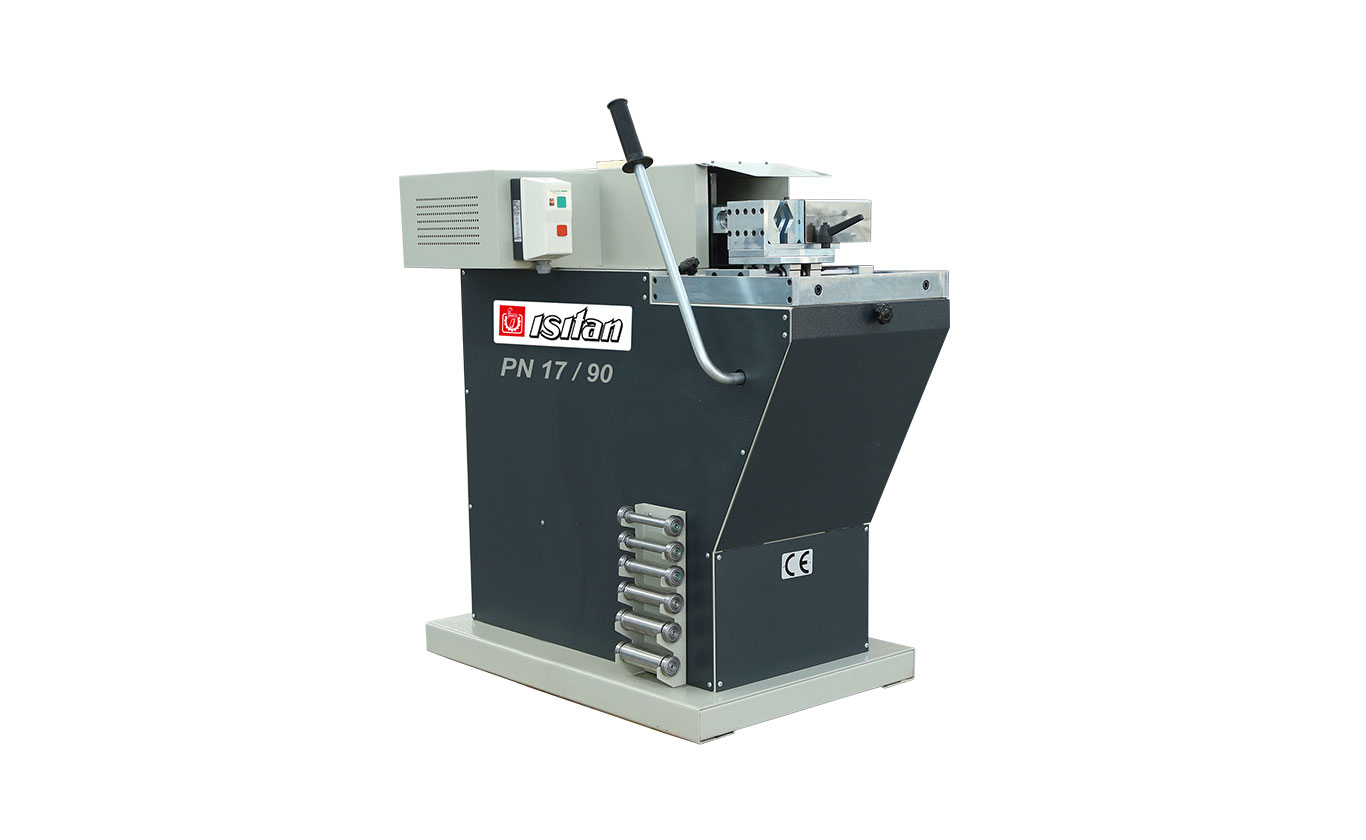

PN 17-90 / MOTORIZED PIPE NOTCHING MACHINES

Home / Products / Section & Pipe Bending Machines / Pipe Notching Machines ( PN Series ) / PN 17-90 / MOTORIZED PIPE NOTCHING MACHINES

ISITAN-PN-17-90

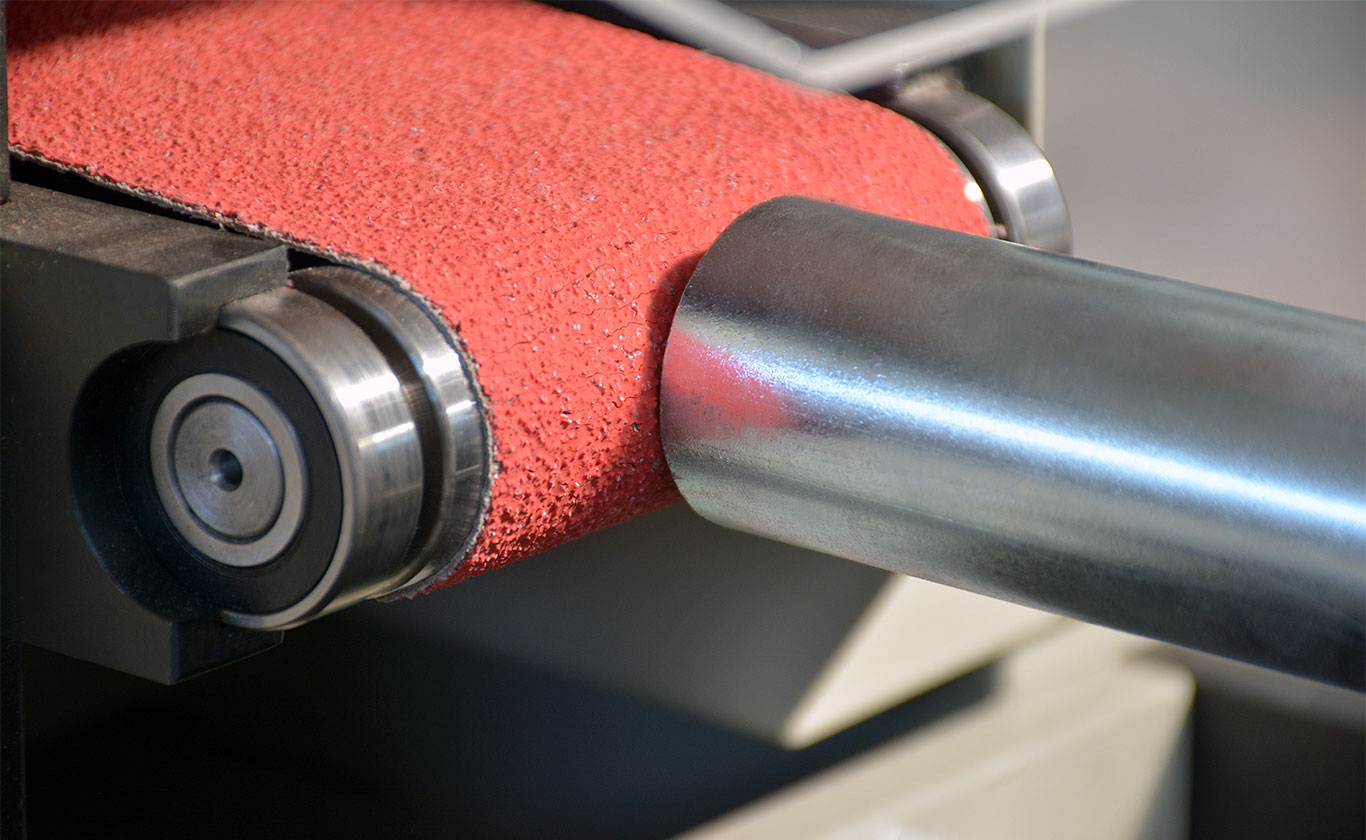

ISITAN-PN17-90-BASIT-MERKEZLEME-AYARI

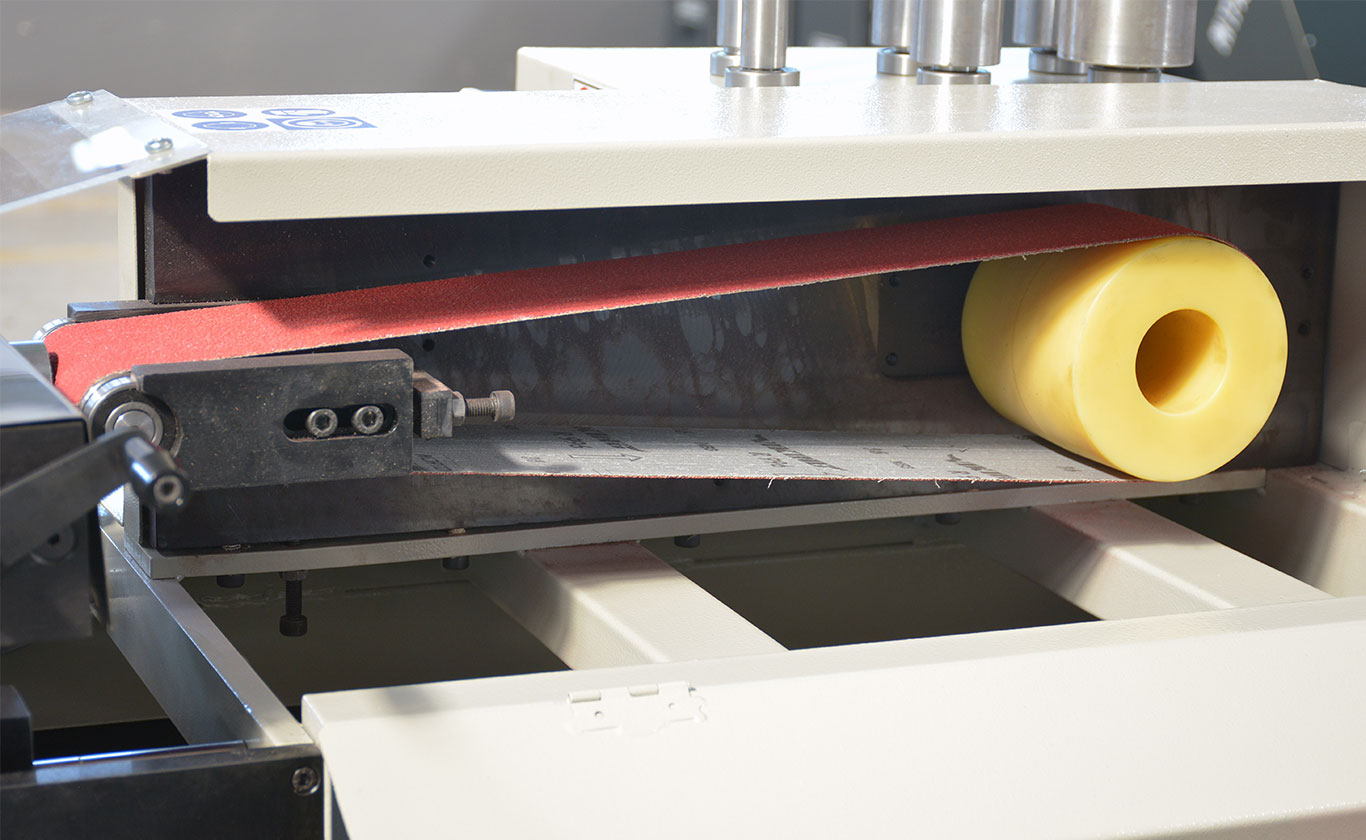

ISITAN-PN17-90-KOLAY-ZIMPARA-AYARI

ISITAN-PN-17-90-NUMUNE

ISITAN-PN17-90-OPS-PNOMATIK-MENGENE

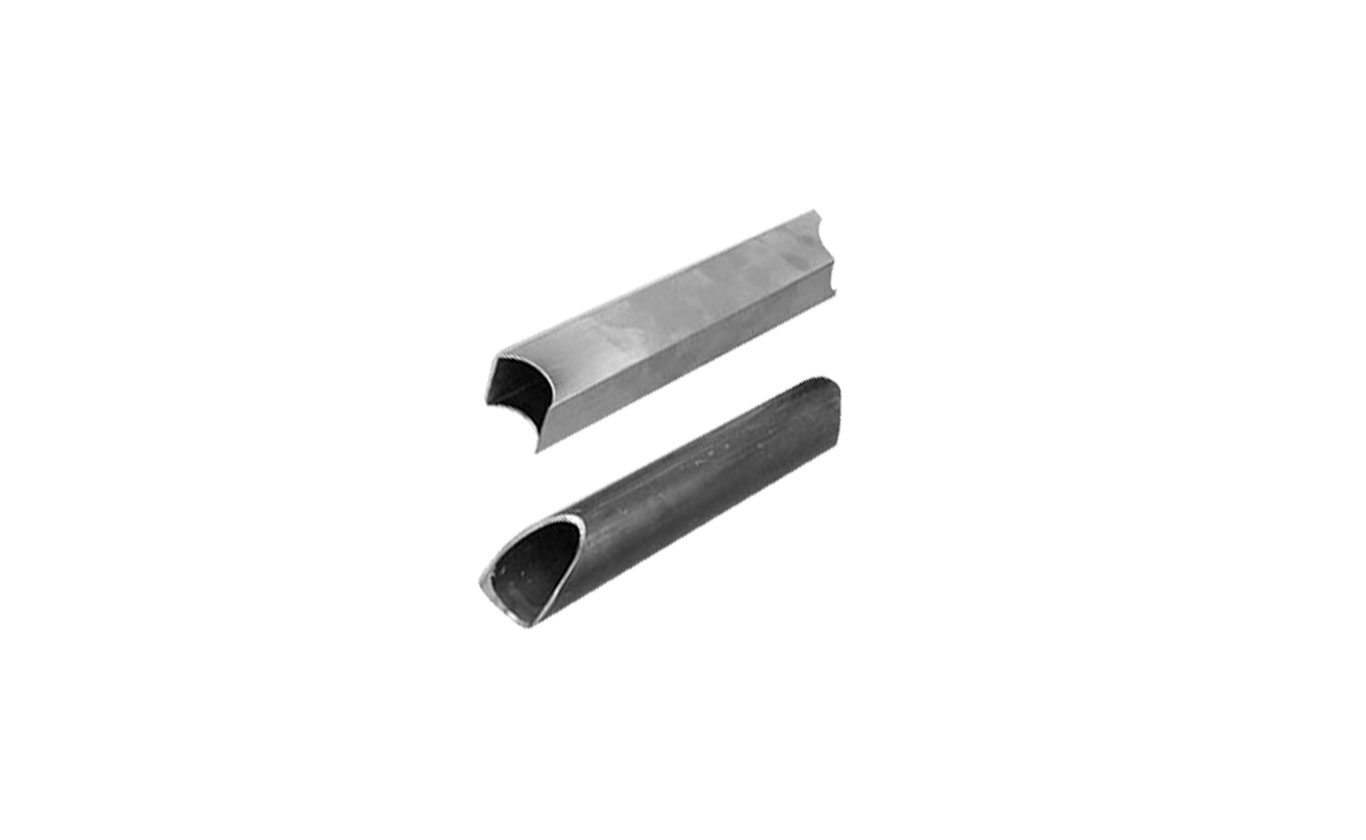

Sample photo

PN 17-90 / MOTORIZED PIPE NOTCHING MACHINES

StandartdFeatures
Optional Features
Technical Table
Product Video
Product Catalog

Standard Features

Charge to easily ability to open suitable dovetails according to the pipe and tube diameters with the help of processing drum.
Ability to tighten and loosen the parts quickly as a result of moving clamp.
Ability of clamp to move right and left sideways
With movable clamp, notching up to 50° degrees angle
Ø19, Ø21, Ø25, Ø32, Ø38, Ø42, Ø48, Ø52, Ø60, Ø76 sizes dove tails.
Sand Band Size 100×1200 mm

Optional Features

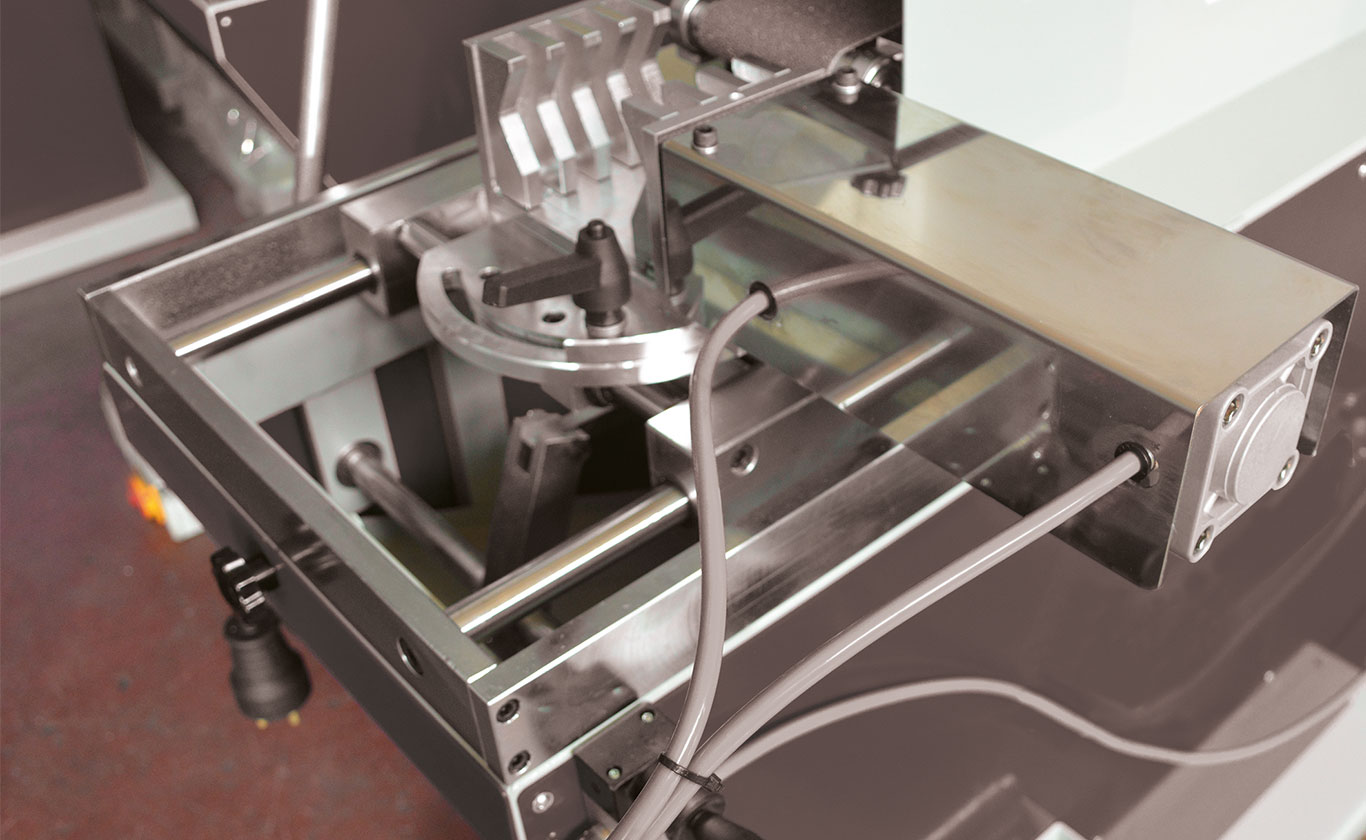

Pneumatic clamping system
Special dovetails for different sizes

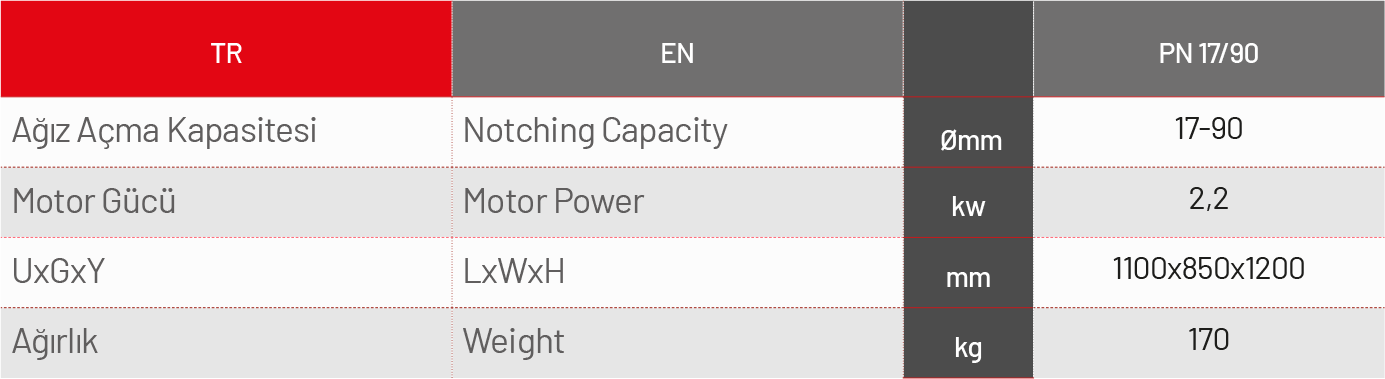

Teknik Tablo

There is no video for this product yet.

There is no PDF for this product.
