4R HMS 650-1050 / HYDRAULIC 4 ROLLS PLATE BENDING MACHINES

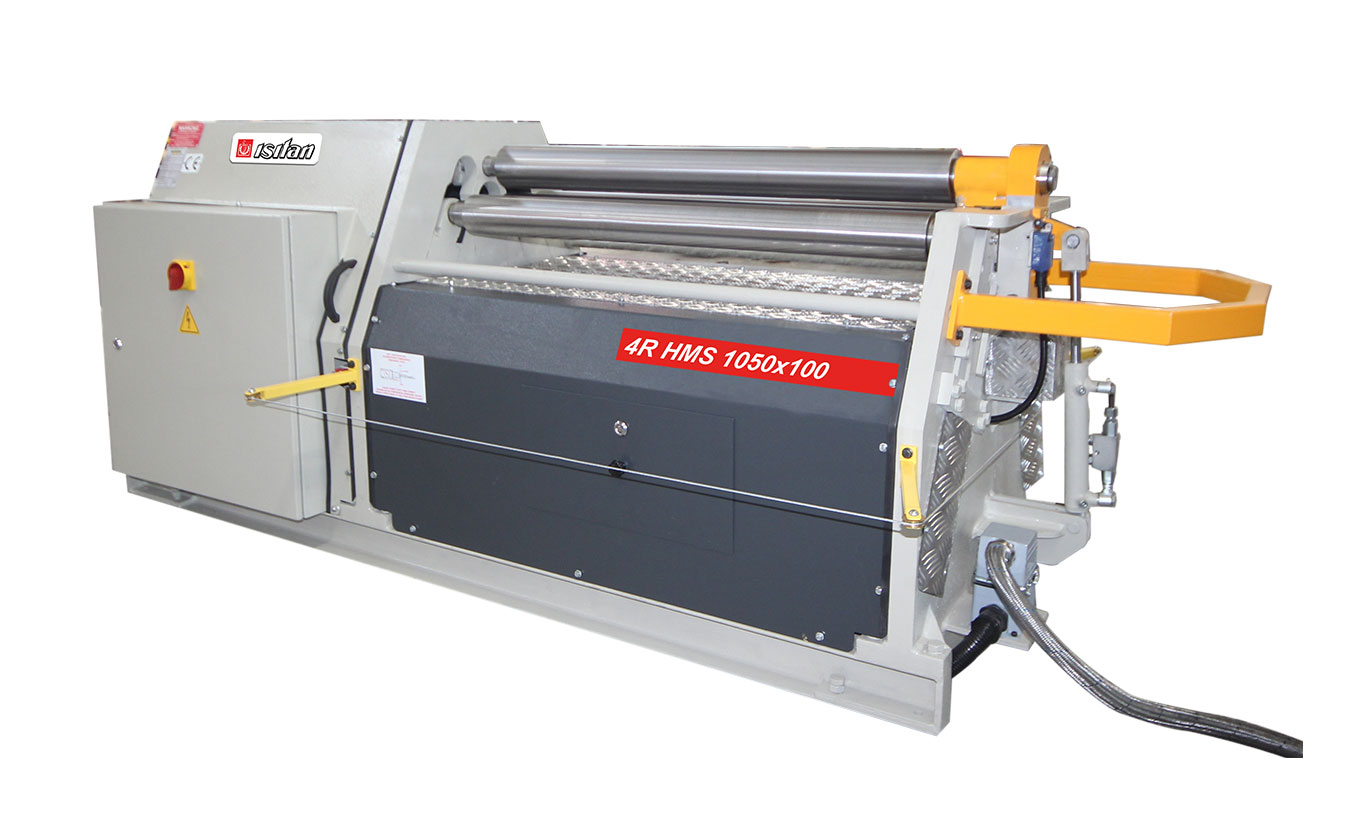

Sample photo

Very suitable for light and medium plates,aluminum or stainless steel
Ferrules in full circle or varying radiuses can be done easily
Pinch Roll and Lateral Rolls move with pyramid linear direct movement by hydraulic pistons.
Overload Protection
Top roll is powered by electrical and planetary gearbox. Bottom roll powered with cardan joint system.
Three digital readouts for easy roll positioning
Hydraulic DropEnd for easy removal of finished ferrule
Easy operation with Mobile Control Panel
Welded Steel frames
Induction hardened forged or rolled SAE 1050 (CK 45) Steel Rolls
Conical Bending device
Hydraulic balancing system
Built according to EC Safety Directives and has CE Mark
User’s manual
